GTV Value Rim Lock

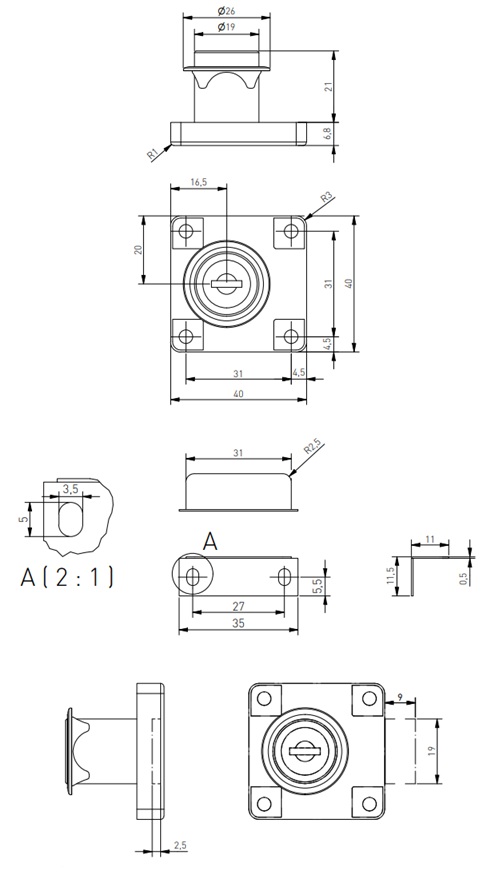

GTV Value Rim Lock Measurements
Dimensions: 40mm x 40mm
Nozzle: 19mm diameter x 21mm
Backset: 23.5mm
Key Range: Differs
Non Mastered
Material: Steel Lock Body
Finish: Chrome Plated
Lock Screw Size: 3mm Csk (Not supplied)
Striker Screw Size: 3.5mm Csk (Not supplied)
Complete with 2 Steel Keys, Rosette & Angled Striker Plate
Manufactured by GTV
GTV Value Rim Lock Description
With a square backplate this drawer lock is suitable for all drawer fronts up to 21mm. It has a backset of 23.5mm and with a tongue extending by 9mm is ideally used with an angled striker plate to secure behind. Available only as differs which are non-mastered.
Please note that spare keys for these locks are not available.
